The TRUMPF/WILA clamping system for press brake tools is the second most popular after the Amada/Promecam system. It is widely used on press brakes, including TRUMPF presses and other press machines in the higher price segment. The TRUMPF/WILA system has slightly less variety of punches and dies than the Amada/Promecam system, but generally provides enough variety to handle most bending tasks.

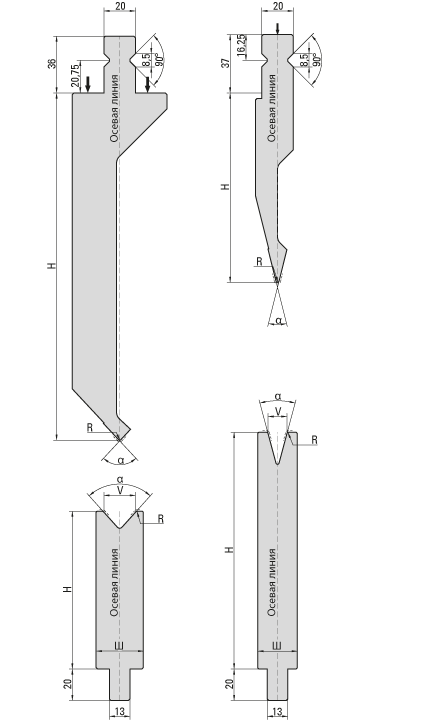

One of the advantages of the TRUMPF/WILA system is the ability to rotate the punches on the press machine without additional devices or manipulations, thanks to the symmetrical design of the shank.

Punches weighing up to 12.5 kg typically feature Safetyclick push-button releases, which allow for easy and convenient installation and removal of punches vertically anywhere on the beam. Punches weighing more than 12.5 kg have Safety pins and can only be inserted and removed from the side.

If your press brake is equipped with a TRUMPF/WILA system, we can offer you standard and custom press brake tools to suit your application. The tool is made of high quality structural steel 42CrMo4.

The volumetric induction heat treatment method is used for all punches and dies. After heat treatment, the working surfaces reach a hardness of 47+/-2 HRc. At the customer’s request, the main working surfaces of the tool can be laser hardened to a hardness of 56-60 HRc.

All fastening, connecting and working surfaces of the tool undergo precision grinding. The parallelism and straightness tolerance is 0.02 mm/1000 mm on all working and mounting surfaces. At the request of the customer, this parameter can be improved to 0.01 mm/1000 mm.
