Standard and custom punches and dies engineered around the machine interface, workpiece material and required bend profile.
LEK manufactures precision upper and lower tooling for common press brake systems. Working angle, tip radius, tool height and connection style are confirmed against the machine and bending requirement.
Tooling can be supplied in full lengths or practical segmented sets for easier handling and flexible box bending. Segment plans, horn pieces and working lengths are prepared according to the production need.

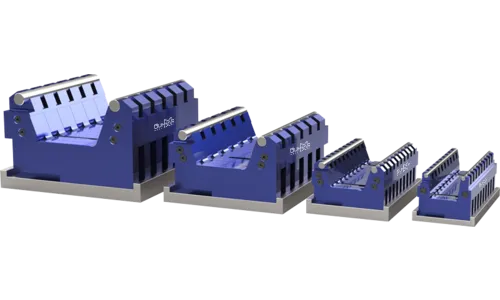

Multi-opening lower tools support several material thicknesses and help reduce changeover time. V openings, shoulder radii and overall dimensions can be configured to match the planned bending range.
For offsets, channels, hemming, large radii and non-standard parts, we develop made-to-drawing tooling after reviewing material, thickness, bend sequence, interference and machine tonnage.

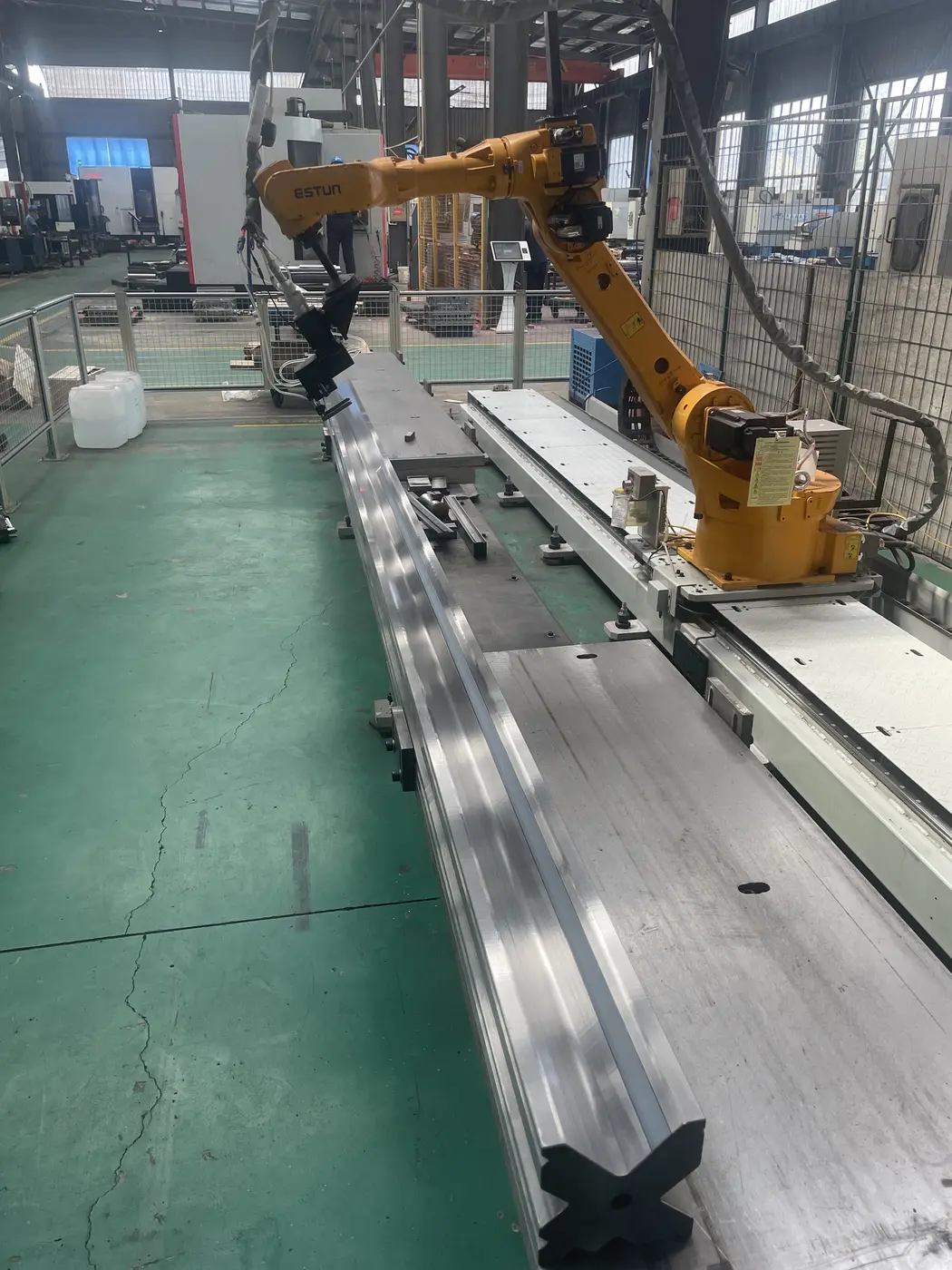

Controlled machining and grinding help maintain accurate angles, consistent radii and smooth working surfaces for repeatable bending results across regular production batches.
Standardized production planning supports repeat orders and matched tooling sets. Dimensions, section lengths and identification marks can be organized for convenient workshop use.

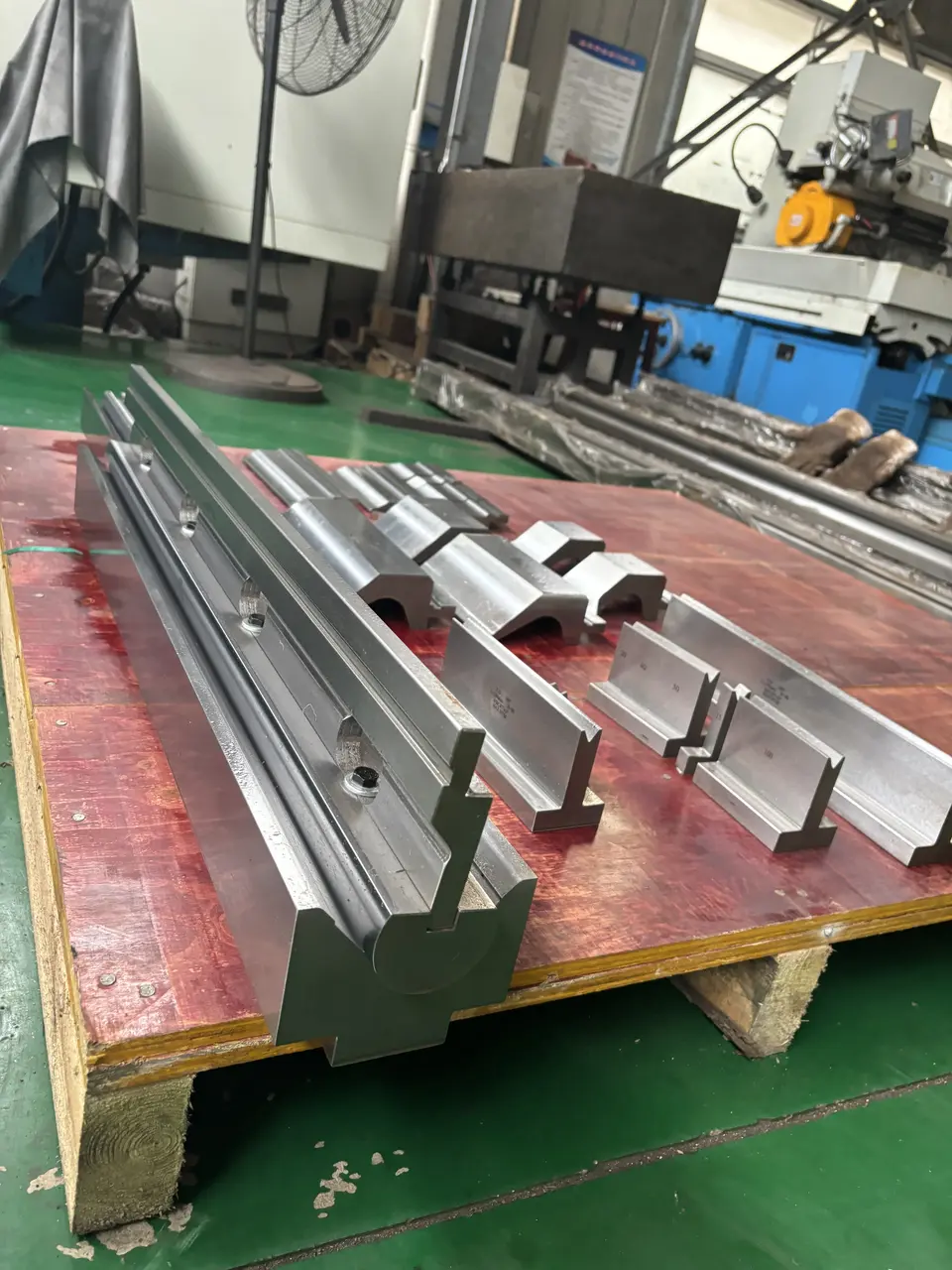

Key dimensions and working profiles are checked before dispatch. Finished punches and dies can be reviewed against approved drawings and application requirements.
Tooling sets are identified, protected and prepared for transport after final inspection. Share your preferred packing, marking and delivery requirements with our team.
Share the machine model, required dimensions, quantity and any available drawing or sample. We will get back to you shortly.
